Features

Monitor: 7-inch WVGA LCD monitorWeight: 0.8kg
Environmental rating: IP54 (main unit) IP67 (probe head)
Battery: 3 hours operation time
Display mode: B 2B ZOOM B B/M M
Depth: Max to 250mm
B gain: 0-100
Image storage: 256 frames
Cine loop: 256 frames
Probe: L50/7.5 MHz linear rectal probe (standardL65/5.0 MHz linear rectal probe (optional)
R20/5.0 MHz micro convex probe (optional)

Click on product images to enlarge

Function

Gravity Sensor: You can operate the ultrasound system either in transversal layout or vertical layout. It can automatically adapt to two different layouts when you rotate it.

Grid for estimation: With grid on the image area, you can easily estimate the size of the target substance like follicle, fertilised egg, etc.

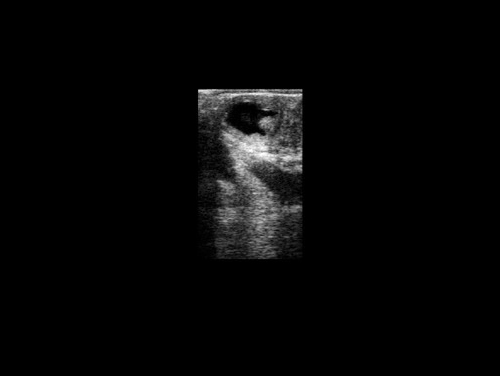

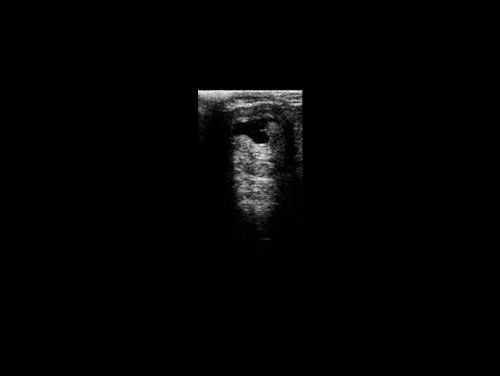

Gallery

Click on images to enlarge
